Clamp Meter / Model PM2108A / 600V / 400A / 40MΩ / 10MHz / 100uF / Operating Temperature 0° C - 40° C

Clamp Meter / Model PM2108A / 600V / 400A / 40MΩ / 10MHz / 100uF / Operating Temperature 0° C - 40° C

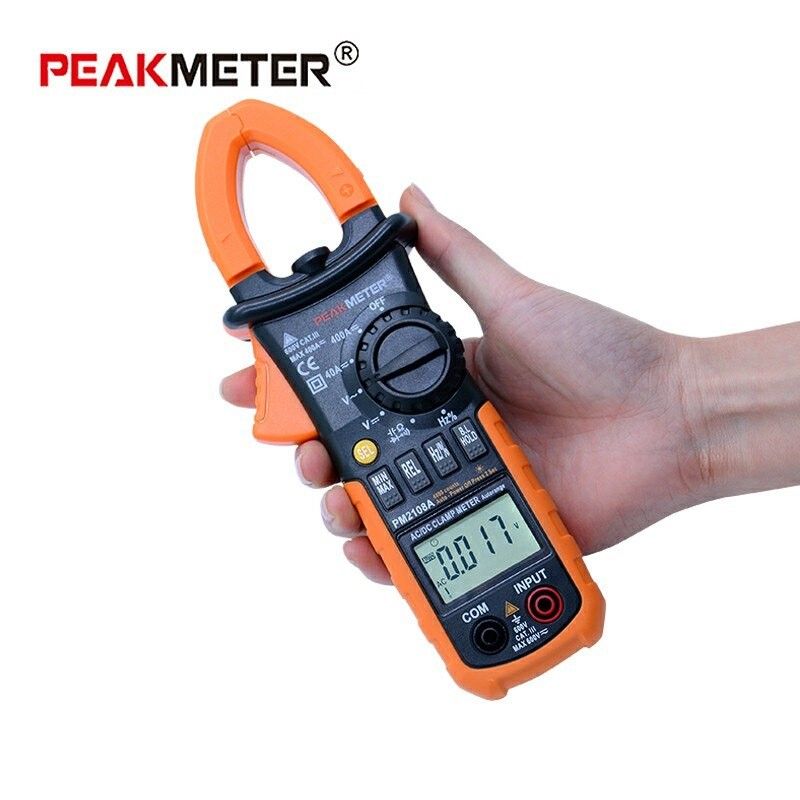

The clamp meter PM2108A is a multifunctional instrument with many practical applications for professional work and home use.
The Peakmeter measures AC/DC current, AC/DC voltage, resistance, frequency, and capacitance.

Some of it's key features include:
•It has a circuit tester diode.
•It also has a backlit LCD display that makes it easy to use even in poorly lit environments.
•It has a one hand operation design for the range switch which makes measurement simple and easy. It also has an auto range option.
•The maximum voltage between terminals and the ground is 1000V DC or 750V rms AC.
•The working height is a maximum of 2,000m.
•It also has automatic shutdown after 30 minutes of inactivity to save on battery power.
•It's operating temperature is from 0° C to 40° C.
•It has an accurate measurement of even very small currents with the resolution of 10mA
•It has an option to hold the minimum, maximum and current value to avoid loss of data while in use.
•It can also work as a flashlight.

Alternating voltage
Range	Resolution	Accuracy
4V	1 mV	±(1.2%+10 units)
40V	10 mV	±(1.2%+10 units)
400V	100 mV	±(1.2%+10 units)
600V	1 V	±(1.2%+10 units)
Input resistance 10 MΩ
Frequency range: 40-400 Hz
Maximum permissible input voltage 600V
Constant Voltage DC:
Range	Resolution	Accuracy
400 mV	0.1 mV	±(0.8%+2 units)
4V	0.001V	±(0.8%+2 units)
40V	0.01V	±(0.8%+2 units)
400V	0.1V	±(0.8%+2 units)
600V	1 V	±(1.0%+2 units)
Input resistance 10 MΩ
Resistance:
Range	Resolution	Accuracy
400 ohms	0.1 Ω	±(1.2%+2 units)
4 Comm	0.001 kΩ
40 Comm	0.01 kΩ	±(1.2%+2 units)
400 Com	0.1 kΩ	±(1.2%+2 units)
4 Mom	0.001 MΩ	±(1.2%+2 units)
40 Mom	0.01 MΩ	±(2.0%+5 units)
Alternating current AC:
Range	Resolution	Accuracy
40 A	0.01A	±(3%+6 units)
400 A	0.1 A	±(3%+6 units)
Frequency range 50-100 Hz
Direct current DC:
Range	Resolution	Accuracy
40 A	0.01 A	±(3%+6 units)
400 A	0.1 A	±(3%+6 units)
Measurement frequency:
Range	Resolution	Accuracy
10 Hz	0.001 Hz	±1.5%±5units
100 Hz	0.01 Hz	1.5%±5 units
1000 Hz	0.1 Hz	1.5%±5 units
10 KHz	1 Hz	1.5%±5 units
100 KHz	10 Hz	1.5%±5 units
1000 KHz	100 Hz	1.5%±5 units
10 MHz	1KHz	1.5%±5 units
Input sensitivity (rms):	200 mv
Measure frequency directly with the clamps
Range	Resolution	Accuracy
10 Hz	0.001 Hz	±1.5%±5units
100 Hz	0.01 Hz	1.5%±5 units
1000 Hz	0.1 Hz	1.5%±5 units
10000 Hz	1 Hz	1.5%±5 units
Capacity:
Range	Resolution	Accuracy
40 nF	0.01 nF	±(3.0%±10 units)
400 nF	0.1 nF	±(3.0%±10 units)
4 uF	0.001 uF	±(3.0%±10 units)
40 uF	0.01 uF	±(3.0%±10 units)
100 uF	0.1uF	±(3.0%±10 units)
Pliers opening	26 mm
Safety standard	CE CAT.III600V RoHS
Power supply	3 x 1.5V AAA
