5 ½ Digit Multimeter / XDM3051 / True-RMS / 1000V / 10A / 100MΩ / 1MHz
Producer:
OWON
Model:
XDM3051
Product number:
118-17381
Warranty:
36 months
Delivery period:
Next Day Delivery
Ksh. 69500.00
Add to cart
Buy
Order by phone: +254 707 431 038
SEDN A REQUEST
Description
Characteristics
Documents

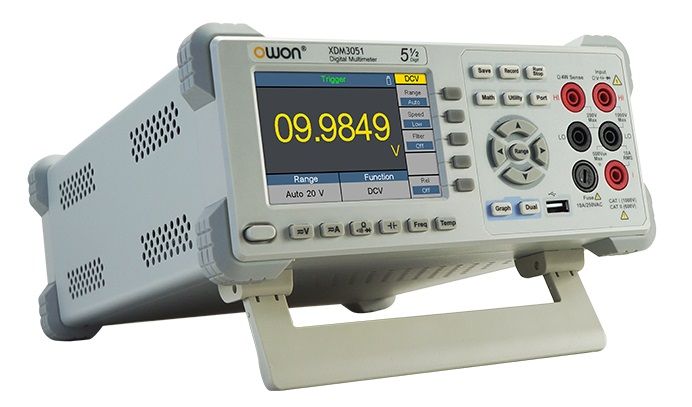

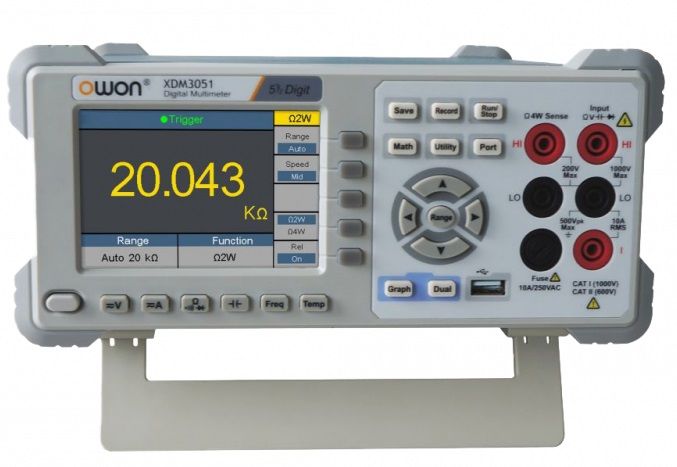

5 ½ Digit Multimeter / XDM3051 / True-RMS / 1000V / 10A / 100MΩ / 1MHz
This digital multimeter has a 4-in (480x320) LCD screen which features 5 ½ digits for display.
The multimeter makes up to 150 measurements per second.
It also gives accurate RMS (True-RMS).

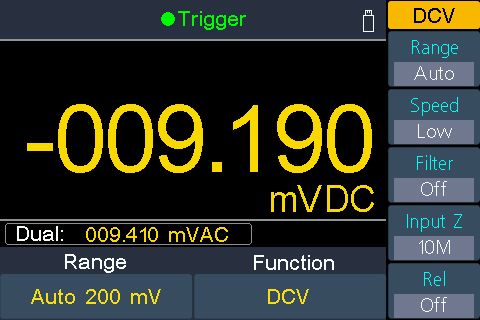

It has a dual display mode which makes it possible to simultaneously measure two parameters of the investigated signal, for example alternating voltage and its frequency.

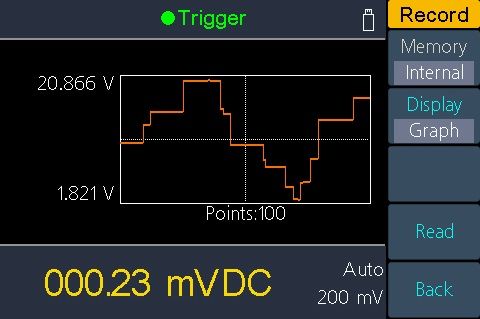

It also features analysis of changes using graphical mode.
It supports SCPI protocol which is remote control and data transmission via LAN, USB, RS232 port, and Wi-Fi but the Wi-Fi module is optional.
It also measures capacitance and temperature.
It is able to record up to 1 million measurements.
The available interfaces are USB device / Host, RS232, LAN, and external trigger input.
This digital multimeter has a 4-in (480x320) LCD screen which features 5 ½ digits for display.
The multimeter makes up to 150 measurements per second.
It also gives accurate RMS (True-RMS).
It has a dual display mode which makes it possible to simultaneously measure two parameters of the investigated signal, for example alternating voltage and its frequency.
It also features analysis of changes using graphical mode.
It supports SCPI protocol which is remote control and data transmission via LAN, USB, RS232 port, and Wi-Fi but the Wi-Fi module is optional.
It also measures capacitance and temperature.
It is able to record up to 1 million measurements.
The available interfaces are USB device / Host, RS232, LAN, and external trigger input.
| XDM3051 | scope | frequency range | accuracy ±(% of measured +% of range) |
| DC voltage | 200mV, 2V, 20V, 200V, 1000V | / | 0.015±0.004 |
| True RMS AC voltage | 200mV, 2V, 20V, 200V, 750V | 20 Hz - 45 Hz | 1.5 + 0.10 |
| 45 Hz - 10 kHz | 0.2 + 0.05 | ||
| 10 kHz - 50 kHz | 1.0 + 0.05 | ||
| 50 kHz - 100 kHz | 3.0 + 0.05 | ||
| DC current | 200,000 μA | / | 0.055 + 0.005 |
| 2.00000mA | 0.055 + 0.005 | ||
| 20.0000mA | 0.095 + 0.020 | ||
| 200,000mA | 0.070 + 0.008 | ||
| 2.00000A | 0.170 + 0.020 | ||
| 10.0000A | 0.250 + 0.010 | ||
| True RMS AC current | 20mA, 200mA, 2A, 10A | 20 Hz - 45 Hz | 1.5 + 0.10 |
| 45 Hz - 2 kHz | 0.50 + 0.10 | ||
| 2 kHz - 10 kHz | 2.50 + 0.20 | ||
| resistance | 200,000 Ω | / | 0.030 + 0.005 |
| 2.00000 kΩ | 0.020 + 0.003 | ||
| 20.0000 kΩ | 0.020 + 0.003 | ||
| 200,000 kΩ | 0.020 + 0.003 | ||
| 2.00000 MΩ | 0.040 + 0.004 | ||
| 10.0000 MΩ | 0.250 + 0.003 | ||
| 100,000 MΩ | 1.75 + 0.004 | ||
| diode test | 2.0000V | / | 0.05 + 0.01 |
| connectivity (short) | 2000 Ω | / | 0.05 + 0.01 |
| frequency, period | 200mV - 750V | 20 Hz - 2 kHz | 0.01 + 0.003 |
| 2 kHz - 10 kHz | 0.01 + 0.003 | ||
| 10 kHz - 200 kHz | 0.01 + 0.003 | ||
| 200 kHz - 1 MHz | 0.01 + 0.006 | ||
| 20mA - 10A | 20 Hz - 2 kHz | 0.01 + 0.003 | |
| 2 kHz - 10 kHz | 0.01 + 0.003 | ||
| capacity | 2,000 nF | 200 nA | 3 + 1.0 |
| 20.00 nF | 200 nA | 1 + 0.5 | |
| 200.0 nF | 2 μA | 1 + 0.5 | |
| 2,000 μF | 10 μA | 1 + 0.5 | |
| 200 μF | 100 μA | 1 + 0.5 | |
| 10000 μF | 1 mA | 2 + 0.5 | |
| temperature | thermocouple | ITS-90 B / E / J / K / N / R / S / T | |
| thermal resistance | RTD Pt100 or Pt385 | ||
| record | data | ||
| time between points | 5 ms | ||
| number of entries | 1M points |
