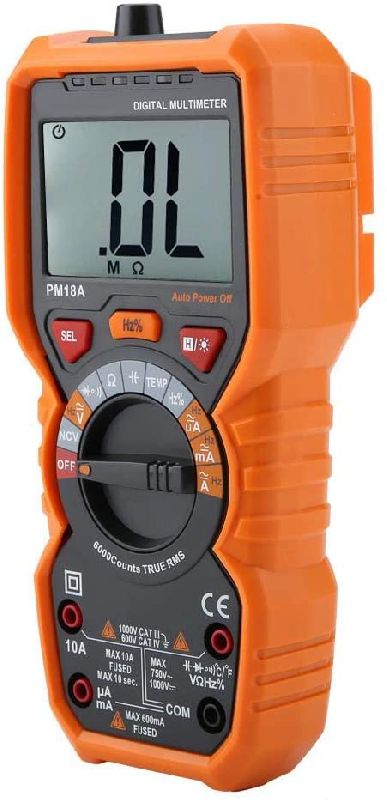

Multimeter (Multiset) / PM18A / True-RMS / 1000V / 10A / 60MΩ / 60mF / 10MHz / 1000℃ / NCV / 100mF
The multi-set multimeter PM18A has high accuracy and a wide range of capabilities.
It measures AC/DC currents and voltages, resistance, capacitance ( up to 100mF), frequency, temperature and pulse duty cycle. It can also test for the presence of electromagnetic fields (non-contact voltage NCV).
It can also test for live wires using non-contact. In this case the distance to the wire can be judged using an LED and sound indication.
It has a diode, transistor and short circuit test.
It can be used both professionally and at home by craftsmen.
The device comes with a support on the back for placing in a comfortable position as well as a flashlight.
The multi-set multimeter PM18A has high accuracy and a wide range of capabilities.
It measures AC/DC currents and voltages, resistance, capacitance ( up to 100mF), frequency, temperature and pulse duty cycle. It can also test for the presence of electromagnetic fields (non-contact voltage NCV).
It can also test for live wires using non-contact. In this case the distance to the wire can be judged using an LED and sound indication.
It has a diode, transistor and short circuit test.
It can be used both professionally and at home by craftsmen.
The device comes with a support on the back for placing in a comfortable position as well as a flashlight.
| Mode | Scope | Accuracy |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3 units) |
| AC Voltage | 6V/60V | ±(0.8%+3 units) |
| 600V/750V | ±(1.0%+10 units) | |
| DC Current | 60μA/6mA/60mA/600mA | ±(0.8%+3 units) |
| 10A | ±(1.2%+3 units) | |
| AC Current | 60μA/6mA/60mA/600mA | ±(1%+3 units) |
| 10A | ±(1.5%+3 units) | |
| Resistance | 600Ω/6kΩ/20kΩ/600kΩ/6MΩ | ±(0.8%+3 units) |
| 60MΩ | ±(1.2%+30 units) | |
| Capacity | 6nF | ±(4.0%+30 units) |
| 60nF/600nF/6uF/60uF/600uF/6mF | ±(4.0%+3 units) | |
| 100mF | ±(5.0%+3 units) | |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+3 units) |
| Temperature | -20℃~1000℃ | ±(1.0%+3 units) |
| Display | 6000 reading options | |
| Hold the reading | √ | |
| True RMS | √ | |
| Frequency of AC voltage and current | 40Hz - 1KHz | |
| ℃ / ℉ | √ | |
| Connectivity | √ high, medium, low (LED indication) | |
| Diode test | √ is shown falls on e.g. in the right direction | |
| Live conductor | √ high, medium, low (LED indication) | |
| Low battery indicator | √ | |
| Automatic shutdown | √ | |
| Backlight | √ | |
| Flashlight | √ | |
| Color | orange and black | |
| Mass | 380 grams | |
| A table with packaging | 500 grams | |

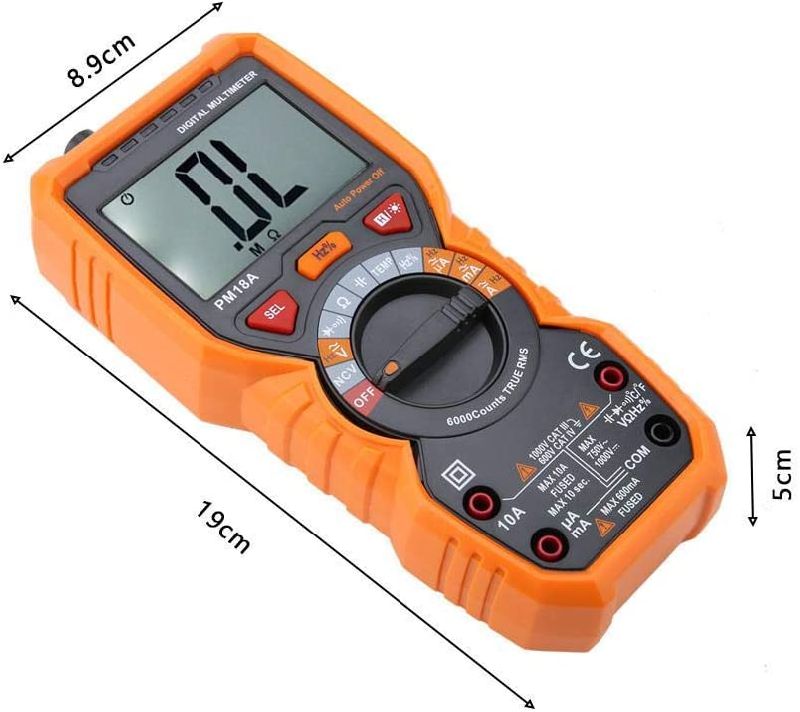

| Multimeter size | (190/89/50mm) | |
| Box size | (215/130/60mm) | |
| Power supply | 4 x 1.5V AA (not included) | |
| Safety standards | EN61010-1, -2-030, EN61010-2-033, EN61326-1, CAT.III 1000V |
