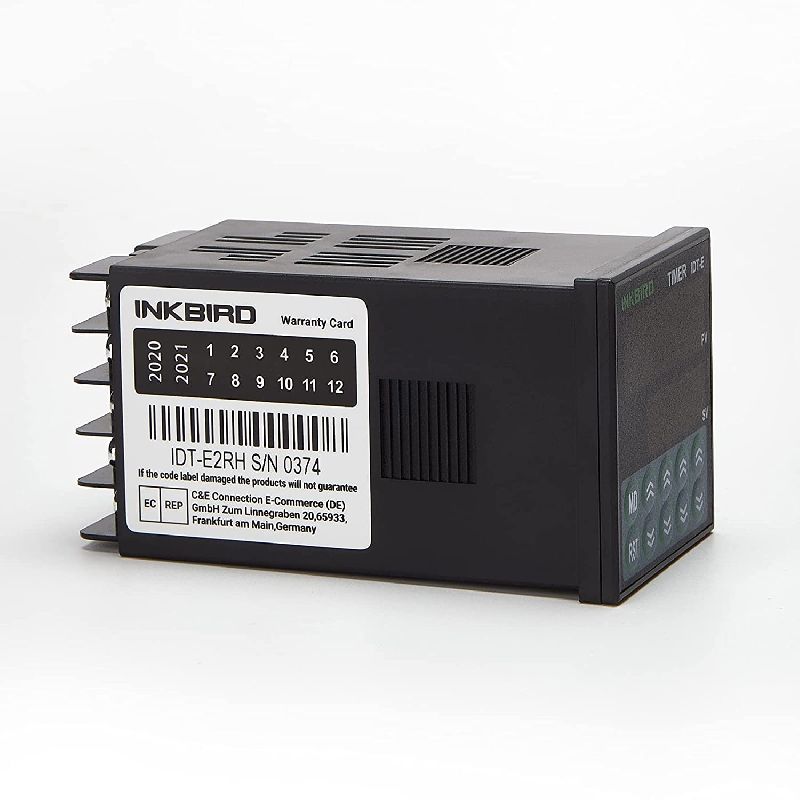

Digital Dual Timer / IDT-E2RH / Two Relays
Producer:
InkBird
Model:
IDT-E2RH
Product number:
330-17326
Warranty:
12 months
Delivery period:
Next Day Delivery
Ksh. 6700.00
Add to cart
Buy Now
Order by phone: +254 707 431 038
SEDN A REQUEST
Description
Characteristics
Documents
Digital Dual Timer / IDT-E2RH / Two Relays
The INKBIRD IDT-E2RH is a dual, digital timer with two relay outputs capable of controlling the duration of operation of LED lights, water pumps, freezers, heaters, etc.
This is a digital model with two operating periods corresponding to the two relays. A working duration from 0.01 seconds to 99 hours and 99 minutes can be individually set for each relay.
The INKBIRD IDT-E2RH is a dual, digital timer with two relay outputs capable of controlling the duration of operation of LED lights, water pumps, freezers, heaters, etc.
This is a digital model with two operating periods corresponding to the two relays. A working duration from 0.01 seconds to 99 hours and 99 minutes can be individually set for each relay.
Main Features:
• Time range from 0.01s to 99h99m, with individual setting of the double timer.
• Single or cyclic mode optional. Up and down mode.
• Switchable NPN and PNP input.
• Clock switch for set value up or down, easy to operate.
• Output: 2 relays.
• High accuracy and reliability.
• 0.39 inch LED display, highly visible and anti-glare.
• Key lock feature that prevents operation errors.
• AC 100-240V power supply and low consumption.
Complete set:
Digital timer - 1 piece
Instructions for use - 1 piece
• Time range from 0.01s to 99h99m, with individual setting of the double timer.
• Single or cyclic mode optional. Up and down mode.
• Switchable NPN and PNP input.
• Clock switch for set value up or down, easy to operate.
• Output: 2 relays.
• High accuracy and reliability.
• 0.39 inch LED display, highly visible and anti-glare.
• Key lock feature that prevents operation errors.
• AC 100-240V power supply and low consumption.
Complete set:
Digital timer - 1 piece
Instructions for use - 1 piece
Time range | 0.01s-99h99m with double set time value, A, B period output | |
Accuracy | 0,1% ±0,05s | |
Front panel dimensions | 48mmX48mm | |
Power supply voltage | AC 100-240V 50/60Hz | |
Operating voltage range | 85~110% Rated voltage | |
PV | 4 digital 9.9mm high red LED letters | |
SV | 4 digital green LED letters with a height of 8 mm | |
Contact output | AC250V 3A | |
A | NO/NC | |
B | NO | |
Relay life span: | ||
Mechanical | 10 000 000 operations min | |
Electric | 10 000 000 operations min | |
Control signals | ≥5ms (Reset, Gate) | |
Control Type / Input | contact / non-voltage input (NPN) / voltage input (PNP) | |
External power supply | DC12V/50mA (маx.) | |
Reset method | power on/external/manual | |
Installation method | Flush mounting and screw terminals | |
Weight | approx. 130 gr | |
Environmental conditions | -10~55°C ; 35-85% humidity |
