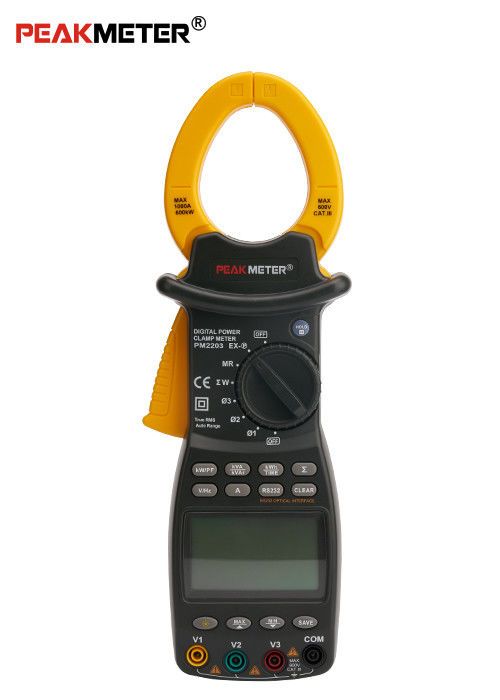

Three-Phase Digital Clamp Meter with TrueRMS / 600kW / 600V / 1000A

Three-Phase Digital Clamp Meter with TrueRMS / 600kW / 600V / 1000A

This is a three-phase digital meter that is very light and easy to use.
It's measures AC voltage and current, active power, apparent power, reactive power, and power factor.
It has a large LCD display with dual 9999 counts.
It is equipped with a large memory to record up to 100 groups of test parameters.
It has a low battery indication to avoid the inconvenience of depleted batteries.
It has a data retention feature that keeps data from being lost while in use.
It has an automatic shutdown feature which helps to save power when not in use
Some of it's key features include:
•It measures the power of 3-phase 3-wire circuit, 3-phase 4-wire circuit, and a single-phase circuit.
•The instrument can complete the True RMS value measurements. If there is a non-sunisoidal AC input signal, it can accurately measure the active current.
•It uses automatic range switching circuit and modular transducer which has 8,000 counts and high resolution the instrument has high accuracy and easy operation.
•It has a dual display of two parameters in each menu and it can store 28 groups of measurement parameters.

AC voltage	0.1～600V ±(1.2%+5)
Alternating current	0.1～1000A ±(2.0%+5)
Active power	0.1kW～600kW ±(3.0%+5)
Apparent power	0.1kVA～600kVA ±(3.0%+5)
Reactive power	0.1kVAr～600kVAr ±(4.0%+5)
Power factor	0.3～1 ±(0.02%+2)
Active energy	0.001kWh～10000kWh ±(3.0%+2)
Frequency	20Hz～1000Hz ±0.5%
Display	9999 pieces
Save and recall data	28 groups
Jaw opening	φ50mm/2.0"
True RMS	Ture rms measurement
Data retention	√
Max./Min	√
Display backlight	√
Low battery indication	√
RS232 interface	√
Power supply	4×1.5V AA batteries
Weight	640 gr
Size	300mm×103mm×51mm
